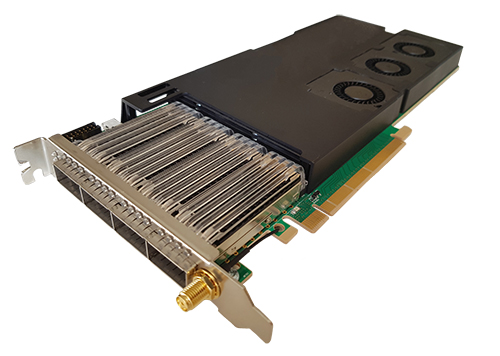

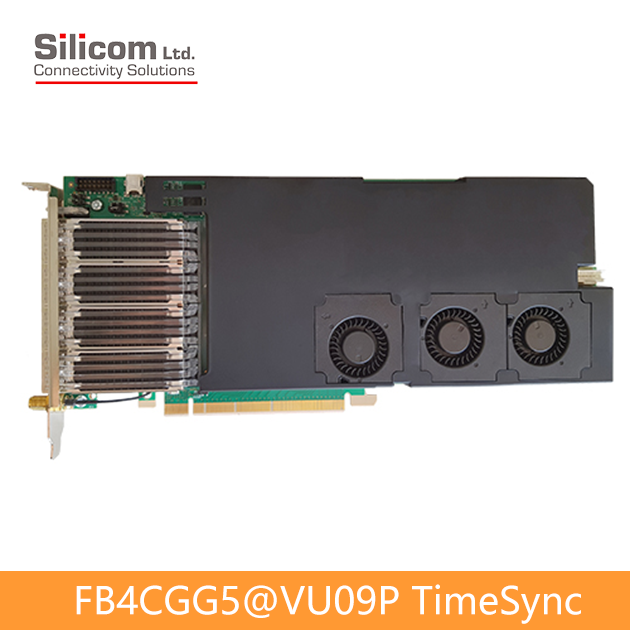

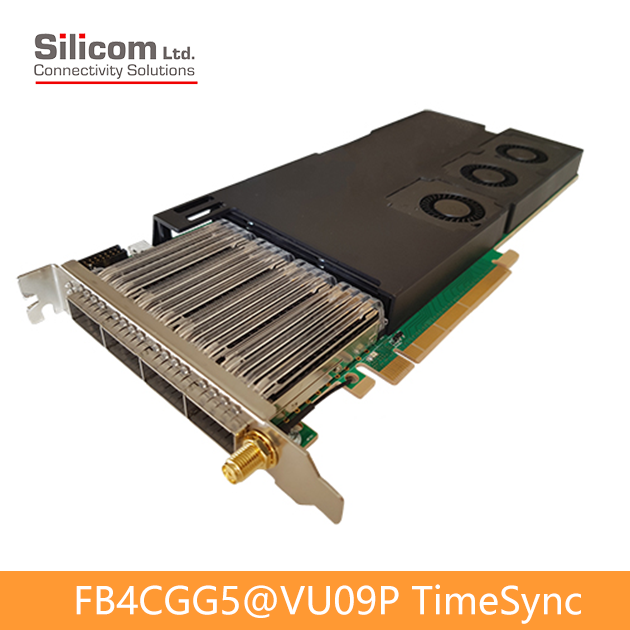

FB4CGG5@VU09P 時間同步卡
商品簡述：
-
FB4CGG5@VU09P 時間同步卡
四埠口 QSFP28 介面卡，支援 4x100GE、16xPCIe Gen3，搭載 AMD® Virtex Ultrascale+ VU9P
FB4CGG5@VU09P TimeSync 是一款高效能 OEM 硬體平台，旨在透過其四組 QSFP28 插槽提供 10/25/40/100 Gigabit 乙太網路連線能力。此介面卡支援多種 FPGA 型號，其標準版本搭載了 AMD® Virtex UltraScale+ VU9P FPGA SG3，能為四組 QSFP28 介面提供充足的容量。
該介面卡搭載兩組 64 位元 DDR4 2400MT/s 4GB 記憶體，總容量為 8 GB。此外，它還具備兩組 SODIMM 插槽，可搭配 DDR4 或 QDRII+ 模組使用，以滿足低延遲應用的需求。 此介面卡採用 ZL30793 DPLL 以實現最佳時鐘控制，確保符合 IEEE-1588-2019 SyncE 與 PTP 規範。
-
FB4CGG5@VU09P 時間同步卡
四埠口 QSFP28 介面卡，支援 4x100GE、16xPCIe Gen3，搭載 AMD® Virtex Ultrascale+ VU9P
- 搭載 AMD® Virtex UltraScale+ VU9P FPGA
- 4 組 QSFP28 埠口
- DPLL ZL30793 時鐘控制器
- 2 x 64 位元 DDR4@2400MT/s 記憶體
- 2 組 SODIMM 插槽（可選配 QDRII+ 或額外 DDR4）
- 用於開機映像檔 (Boot images) 的組態快閃記憶體 (Configuration Flash RAM)
- PCIe 外型規格：3/4 長度、標準高度 PCIe
- 板載電源與溫度感測器
- 由 FPGA 控制的鏈路 (Link) 與狀態 LED 指示燈
- 被動式散熱（選配）
-
FB4CGG5@VU09P 時間同步卡
Quad QSFP28 port card supporting 4x100GE, 16xPCIe Gen3, AMD® Virtex Ultrascale+ V09P
Network Interface
IEEE Standard IEEE 802.3 10/40/25/100 GE Interface - Physical interface: 4 x QSFP28 ports (2 port variant available)
- Supported QSFP+/QSFP28 modules: including fan-out
- Modules for 4x10G/4x25GE, Multimode SR4 (850nm)
- singlemode LR4 (1310nm), multimode LRM4 (1310nm), or Direct Attached Copper (Twinax) and others
- Data rate: 16×10, 4×40, 16×25, 4×100 Gbps
Host Interface
PCI bus: - Physical bus connector: 16-lane PCIe
- PCIe bus type: 1-16 lane PCIe Gen1/Gen2/Gen3 via on-board PLX PCIe switch
- Optional 2×8 PCIe lanes via secondary High speed serial connector
General Technical Specifications
Configuration - 16-bit fast parallel programming interface from supporting preprogrammed controller
- Configuration flash supports two boot images with automatic fallback to fail safe image if first image fails
- Upload of FPGA configuration to flash via PCIe
- Support for encrypted FPGA bit file (optional)
On-Board Memory - 2 x 64-bit DDR4@2400MT/s 4 GB
- 2 x Optional SODIMM
- – 64-bit DDR4@2400MT/s 4 GB
- 8 MB user configurable space in flash for permanent storage
On-Board Clock - PCIe clock: 100 MHz
- 200 MHz clock
- 50 MHz clock
- 161.13 MHz clock
- DPLL ZL30793
FPGA Details AMD® Virtex Ultrascale+ XCVU9P Environment - Physical dimensions: 3/4 length, standard height PCIe
- Power consumption: Operating temperature: 0 – 55°C, 30 – 130°F
- Operating humidity: 20 – 80%
- Hardware compliance: RoHS, CE
- Active cooling (heat sink with fan)
- Passive cooling (optional)
Time Synchronization - PTP: Yes, with PTP4L or zlsptp on x86
- Support Sync-E/ 1588 standard
- DPLL: ZL30793
Additional Intellectual Property Modules - PacketMover framework (optional)
- SmartNIC framework (optional)
- Ultra low latency 10GE MAC (optional)
- TCP-offload engine (optional)
-
產品說明
FB4CGG5@VU09P 時間同步卡
四埠口 QSFP28 介面卡，支援 4x100GE、16xPCIe Gen3，搭載 AMD® Virtex Ultrascale+ VU9P
FB4CGG5@VU09P TimeSync 是一款高效能 OEM 硬體平台，旨在透過其四組 QSFP28 插槽提供 10/25/40/100 Gigabit 乙太網路連線能力。此介面卡支援多種 FPGA 型號，其標準版本搭載了 AMD® Virtex UltraScale+ VU9P FPGA SG3，能為四組 QSFP28 介面提供充足的容量。
該介面卡搭載兩組 64 位元 DDR4 2400MT/s 4GB 記憶體，總容量為 8 GB。此外，它還具備兩組 SODIMM 插槽，可搭配 DDR4 或 QDRII+ 模組使用，以滿足低延遲應用的需求。 此介面卡採用 ZL30793 DPLL 以實現最佳時鐘控制，確保符合 IEEE-1588-2019 SyncE 與 PTP 規範。
-
功能特色
FB4CGG5@VU09P 時間同步卡
四埠口 QSFP28 介面卡，支援 4x100GE、16xPCIe Gen3，搭載 AMD® Virtex Ultrascale+ VU9P
- 搭載 AMD® Virtex UltraScale+ VU9P FPGA
- 4 組 QSFP28 埠口
- DPLL ZL30793 時鐘控制器
- 2 x 64 位元 DDR4@2400MT/s 記憶體
- 2 組 SODIMM 插槽（可選配 QDRII+ 或額外 DDR4）
- 用於開機映像檔 (Boot images) 的組態快閃記憶體 (Configuration Flash RAM)
- PCIe 外型規格：3/4 長度、標準高度 PCIe
- 板載電源與溫度感測器
- 由 FPGA 控制的鏈路 (Link) 與狀態 LED 指示燈
- 被動式散熱（選配）
-
技術規格
FB4CGG5@VU09P 時間同步卡
Quad QSFP28 port card supporting 4x100GE, 16xPCIe Gen3, AMD® Virtex Ultrascale+ V09P
Network Interface
IEEE Standard IEEE 802.3 10/40/25/100 GE Interface - Physical interface: 4 x QSFP28 ports (2 port variant available)
- Supported QSFP+/QSFP28 modules: including fan-out
- Modules for 4x10G/4x25GE, Multimode SR4 (850nm)
- singlemode LR4 (1310nm), multimode LRM4 (1310nm), or Direct Attached Copper (Twinax) and others
- Data rate: 16×10, 4×40, 16×25, 4×100 Gbps
Host Interface
PCI bus: - Physical bus connector: 16-lane PCIe
- PCIe bus type: 1-16 lane PCIe Gen1/Gen2/Gen3 via on-board PLX PCIe switch
- Optional 2×8 PCIe lanes via secondary High speed serial connector
General Technical Specifications
Configuration - 16-bit fast parallel programming interface from supporting preprogrammed controller
- Configuration flash supports two boot images with automatic fallback to fail safe image if first image fails
- Upload of FPGA configuration to flash via PCIe
- Support for encrypted FPGA bit file (optional)
On-Board Memory - 2 x 64-bit DDR4@2400MT/s 4 GB
- 2 x Optional SODIMM
- – 64-bit DDR4@2400MT/s 4 GB
- 8 MB user configurable space in flash for permanent storage
On-Board Clock - PCIe clock: 100 MHz
- 200 MHz clock
- 50 MHz clock
- 161.13 MHz clock
- DPLL ZL30793
FPGA Details AMD® Virtex Ultrascale+ XCVU9P Environment - Physical dimensions: 3/4 length, standard height PCIe
- Power consumption: Operating temperature: 0 – 55°C, 30 – 130°F
- Operating humidity: 20 – 80%
- Hardware compliance: RoHS, CE
- Active cooling (heat sink with fan)
- Passive cooling (optional)
Time Synchronization - PTP: Yes, with PTP4L or zlsptp on x86
- Support Sync-E/ 1588 standard
- DPLL: ZL30793
Additional Intellectual Property Modules - PacketMover framework (optional)
- SmartNIC framework (optional)
- Ultra low latency 10GE MAC (optional)
- TCP-offload engine (optional)
