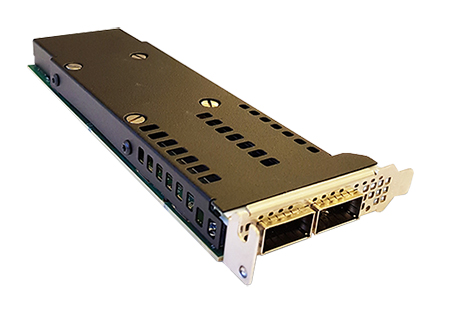

fb2CGhh@KU15P FPGA Card
商品簡述：
The 100G dual FPGA card fb2CGhh@KU15P is a low-profile high performance OEM hardware platform intended for 10/40/25/50/100 Gigabit Ethernet via its dual QSFP28 slots.
The standard configuration is based on the Xilinx® Kintex UltraScale+ KU15P FPGA, to provide ample capacity for the dual QSFP28 interface. The card features the KU15P to keep the solution as cost effective as high performance computing allows.
The card is mounted with 2 x 72-bit DDR4 ECC RAM, 4GB for a total of 8 GB.
檔案下載
-
- Xilinx® Kintex UltraScale+ XCKU15P FPGA
- 2 x QSFP28 ports
- 2 x 72-bit DDR4@2666MT/s (4 GB per bank with ECC)
- Configuration flash RAM for boot images
- PCIe form-factor: Half height, half length (68.9 x 167.65 mm with bracket)
- On-board power and temperature sensors
- FPGA controlled link and status LEDs
- Passive cooling alternative available
-
General Technical Specifications
Host Interface - HOST INTERFACE
- Physical bus connector: 16-lane PCIe
- PCIe bus type: 1-16 lane PCIe Gen1/Gen2/Gen3
- Support for SMBUS
Network Interface - IEEE standard: IEEE 802.3 10/40/25/100 GE
- Physical interface: 2 x QSFP28 ports
- Supported QSFP+/QSFP28 modules: including fan-out
- modules for 4x10G/4x25GE, Multimode SR4 (850nm),
- singlemode LR4 (1310nm), multimode LRM4 (1310
- nm), or Direct Attached Copper (Twinax) and others.
- Data rate: 8×10, 2×40, 8×25, 2×100 Gbps
- Support for SyncE
Configuration - Quad SPI fast parallel programming interface from supporting preprogrammed controller
- Configuration flash supports two boot images with automatic fallback to fail safe image if first image fails
- Upload of FPGA configuration to flash via PCIe or directly from Xilinx Vivado via the onboard JTAG dongle
- Direct FPGA configuration from Xilinx via the onboard JTAG dongle
- Supports Tandem PROM boot
On-Board Memory - 2 x 72-bit DDR4@2666MT/s (4 GB per bank with ECC)
- User configurable space in flash RAM for permanent storage
- Configuration flash RAM for boot images
On-Board Clock - PCIe clock: 100 MHz
- 2 x differential 161.13 MHz SerDes clock for Ethernet
- 2 x differential 266.67 MHz clock for Memory
- 50 MHz clock
FPGA details - FPGA Xilinx® Kintex Ultrascale+ XCKU15P
Environment - Physical dimensions: ½ height, ½ length 68.90 x 167.65 mm with bracket
- Storage temperaure: -30 – 70°C , -22 – 158°F
- Operating temperature: 0 – 55°C, 30 – 130°F
- Operating humidity: 20 – 80%
- Hardware compliance: RoHS, CE
Additional Board Support - On-board power and temperature sensors
- FPGA controlled Link and Activity LED for each port. 4 for each QSFP.
- Board status LEDs
- Failsafe button on bracket
- PPS clock synchronization connector (optional)
Power - Max 75W
- Passive cooling alternatives available
- Power, temperature and FAN tacho sensor reading
On-Board Microcontroller - Board management Microcontroller for various internal control tasks as well as external communication
- SMbus/I2c
- Possible to readout telemetry parameters
-
功能說明
- Xilinx® Kintex UltraScale+ XCKU15P FPGA
- 2 x QSFP28 ports
- 2 x 72-bit DDR4@2666MT/s (4 GB per bank with ECC)
- Configuration flash RAM for boot images
- PCIe form-factor: Half height, half length (68.9 x 167.65 mm with bracket)
- On-board power and temperature sensors
- FPGA controlled link and status LEDs
- Passive cooling alternative available
-
技術規格
General Technical Specifications
Host Interface - HOST INTERFACE
- Physical bus connector: 16-lane PCIe
- PCIe bus type: 1-16 lane PCIe Gen1/Gen2/Gen3
- Support for SMBUS
Network Interface - IEEE standard: IEEE 802.3 10/40/25/100 GE
- Physical interface: 2 x QSFP28 ports
- Supported QSFP+/QSFP28 modules: including fan-out
- modules for 4x10G/4x25GE, Multimode SR4 (850nm),
- singlemode LR4 (1310nm), multimode LRM4 (1310
- nm), or Direct Attached Copper (Twinax) and others.
- Data rate: 8×10, 2×40, 8×25, 2×100 Gbps
- Support for SyncE
Configuration - Quad SPI fast parallel programming interface from supporting preprogrammed controller
- Configuration flash supports two boot images with automatic fallback to fail safe image if first image fails
- Upload of FPGA configuration to flash via PCIe or directly from Xilinx Vivado via the onboard JTAG dongle
- Direct FPGA configuration from Xilinx via the onboard JTAG dongle
- Supports Tandem PROM boot
On-Board Memory - 2 x 72-bit DDR4@2666MT/s (4 GB per bank with ECC)
- User configurable space in flash RAM for permanent storage
- Configuration flash RAM for boot images
On-Board Clock - PCIe clock: 100 MHz
- 2 x differential 161.13 MHz SerDes clock for Ethernet
- 2 x differential 266.67 MHz clock for Memory
- 50 MHz clock
FPGA details - FPGA Xilinx® Kintex Ultrascale+ XCKU15P
Environment - Physical dimensions: ½ height, ½ length 68.90 x 167.65 mm with bracket
- Storage temperaure: -30 – 70°C , -22 – 158°F
- Operating temperature: 0 – 55°C, 30 – 130°F
- Operating humidity: 20 – 80%
- Hardware compliance: RoHS, CE
Additional Board Support - On-board power and temperature sensors
- FPGA controlled Link and Activity LED for each port. 4 for each QSFP.
- Board status LEDs
- Failsafe button on bracket
- PPS clock synchronization connector (optional)
Power - Max 75W
- Passive cooling alternatives available
- Power, temperature and FAN tacho sensor reading
On-Board Microcontroller - Board management Microcontroller for various internal control tasks as well as external communication
- SMbus/I2c
- Possible to readout telemetry parameters
