▪ 2 x QSFP+ ports
▪ 2 x 4 64-bit DDR3@1600MT/s
▪ 1 x 36-bit QDRI I+@2200MT/s 144 Mb/288 Mb/576 Mb (optional)
▪ 1 x 36-bit RLD3@1600MT/s 1152 Mb
▪ Configuration flash RAM for boot images
▪ On-board power and temperature sensors
▪ FPGA controlled link and status LEDs
▪ Active and passive cooling alternative available
-

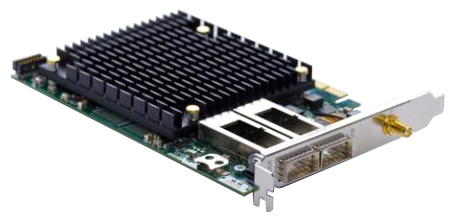

The fb8XG@V7690 is a high performance OEM hardware platform intended for 40G and 10G Ethernet with dual port QSFP+ network interface.
The standard configuration is based on Xilinx Virtex7 VX FPGA. The card is also offered with a variety of different FPGAs and memory configurations to provide flexibility for the intended application.
As an optional feature, the card can be fitted with two SATA connectors which can provide connectivity to a wide range of standard storage devices directly to the FPGA card.
-
Host Interface:
- Physical bus connector: 8-lane PCIe
- PCIe bus type: 1-8 lane PCIe Gen1/Gen2/Gen3
Network Interface:
- EE standard: IEEE 802.3 10 Gbit/s Ethernet
- Physical interface: 2 x QSFP+ ports
- Supported QSFP+ modules: Including fan-out modules for 4 x 10 G, Multimode SR (850 nm), singlemode LR (1310 nm), multimode LRM (1310 nm), or Direct Attached Copper (Twinax)
- Data rate: 2 x 40 Gbit/s or 8 x 10 Gbit/s
- Ethernet PHY directly embedded in FPGA
Configuration:
- 16 bit fast parallel programming interface from supporting preprogrammed controller
- Configuration flash supports two boot images with automatic fallback to fail safe image if first image fails
- Upload of FPGA configuration to flash via PCIe
- Support for encrypted FPGA bit file (optional)
-
General Technical Specifications
On Board Memory: 2 x 64 bit DDR3@1600MT/s 4GB (total 8GB memory)
1 x 36 bit QDRI I+@2200MT/s 144 Mb / 288 Mb / 576 Mb(optional)
1 x 36 bit RLD3@1600MT/s 1152 Mb
1 MB user configurable space in flash for permanent storageOn Board Clock: PCIe clock: 100MHz
125 MHz oscillator
156.25 MHz oscillator
150 MHz oscillator for SATA (optional)FPGA & Memory Options: fb8XG@V7690 Xilinx Virtex7 XC7VX690T-2 and 144Mb of QDRII+
fb8XG@V7691 Xilinx Virtex7 XC7VX690T-3 and 288Mb of QDRII+
fb8XG@V7692 Xilinx Virtex7 XC7VX690T-3 and 0Mb QDRII+ and 0Mb RLD3
fb8XG@V7693 Xilinx Virtex7 XC7VX690T-3 and 144Mb of QDRII+
fb8XG@V7695 Xilinx Virtex7 XC7VX690T-3 and 288Mb of QDRII+
Xilinx Virtex7 XC7VX415T (optional)
Xilinx Virtex7 XC7VX330T (optional)
Other speedgrades available on requestEnvironment:
Physical dimensions: Half length, standard height PCIe Power consumption: Less than 7W with uninitialized FPGA Operating temperature: 0 – 55°C, 30 – 130°F Operating humidity: 20 – 80% Hardware compliance: RoHS, CE Passive cooling: no on-board fan required Active cooling: optional Additional Board Support: On board temperature sensor
Board status LED
FPGA controlled Link and Activity LED for each port
PPS clock synchronization connector
2 x SATA connector (optional)Additional Intellectual Property Support: Flash configuration I/F
8 lane PCIe
DDR3 Memory controller
QDRII+ Memory controller
Fast Ethernet MAC (optional)
MDIO controller (optional)
I2C controller (optional)
SPI master I/F (optional)
TCP-offload engine (optional) -
P/N
Description
Notes
fb8XG@V7 Dual QSFP+ port card supporting 8x10GE/2x40GE, PCIe Gen 3 x8 lanes RoHS Compliant
-
產品說明
The fb8XG@V7690 is a high performance OEM hardware platform intended for 40G and 10G Ethernet with dual port QSFP+ network interface.
The standard configuration is based on Xilinx Virtex7 VX FPGA. The card is also offered with a variety of different FPGAs and memory configurations to provide flexibility for the intended application.
As an optional feature, the card can be fitted with two SATA connectors which can provide connectivity to a wide range of standard storage devices directly to the FPGA card.
-
功能說明
Host Interface:
- Physical bus connector: 8-lane PCIe
- PCIe bus type: 1-8 lane PCIe Gen1/Gen2/Gen3
Network Interface:
- EE standard: IEEE 802.3 10 Gbit/s Ethernet
- Physical interface: 2 x QSFP+ ports
- Supported QSFP+ modules: Including fan-out modules for 4 x 10 G, Multimode SR (850 nm), singlemode LR (1310 nm), multimode LRM (1310 nm), or Direct Attached Copper (Twinax)
- Data rate: 2 x 40 Gbit/s or 8 x 10 Gbit/s
- Ethernet PHY directly embedded in FPGA
Configuration:
- 16 bit fast parallel programming interface from supporting preprogrammed controller
- Configuration flash supports two boot images with automatic fallback to fail safe image if first image fails
- Upload of FPGA configuration to flash via PCIe
- Support for encrypted FPGA bit file (optional)
-
技術規格
General Technical Specifications
On Board Memory: 2 x 64 bit DDR3@1600MT/s 4GB (total 8GB memory)
1 x 36 bit QDRI I+@2200MT/s 144 Mb / 288 Mb / 576 Mb(optional)
1 x 36 bit RLD3@1600MT/s 1152 Mb
1 MB user configurable space in flash for permanent storageOn Board Clock: PCIe clock: 100MHz
125 MHz oscillator
156.25 MHz oscillator
150 MHz oscillator for SATA (optional)FPGA & Memory Options: fb8XG@V7690 Xilinx Virtex7 XC7VX690T-2 and 144Mb of QDRII+
fb8XG@V7691 Xilinx Virtex7 XC7VX690T-3 and 288Mb of QDRII+
fb8XG@V7692 Xilinx Virtex7 XC7VX690T-3 and 0Mb QDRII+ and 0Mb RLD3
fb8XG@V7693 Xilinx Virtex7 XC7VX690T-3 and 144Mb of QDRII+
fb8XG@V7695 Xilinx Virtex7 XC7VX690T-3 and 288Mb of QDRII+
Xilinx Virtex7 XC7VX415T (optional)
Xilinx Virtex7 XC7VX330T (optional)
Other speedgrades available on requestEnvironment:
Physical dimensions: Half length, standard height PCIe Power consumption: Less than 7W with uninitialized FPGA Operating temperature: 0 – 55°C, 30 – 130°F Operating humidity: 20 – 80% Hardware compliance: RoHS, CE Passive cooling: no on-board fan required Active cooling: optional Additional Board Support: On board temperature sensor
Board status LED
FPGA controlled Link and Activity LED for each port
PPS clock synchronization connector
2 x SATA connector (optional)Additional Intellectual Property Support: Flash configuration I/F
8 lane PCIe
DDR3 Memory controller
QDRII+ Memory controller
Fast Ethernet MAC (optional)
MDIO controller (optional)
I2C controller (optional)
SPI master I/F (optional)
TCP-offload engine (optional) -
訂購資訊
P/N
Description
Notes
fb8XG@V7 Dual QSFP+ port card supporting 8x10GE/2x40GE, PCIe Gen 3 x8 lanes RoHS Compliant
