▪ 4 x SFP+ ports
▪ 2 x 4 64-bit DDR3@1600MT/s
▪ Configuration flash RAM for boot images
▪ On-board power and temperature sensors
▪ FPGA controlled link and status LEDs
▪ Active and passive cooling alternative available
-
Quad Port 100/1G/10G Gigabit FPGA Card

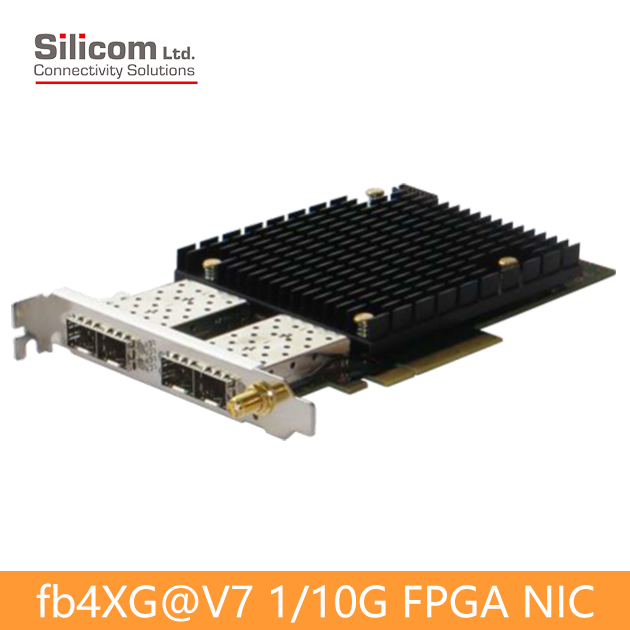

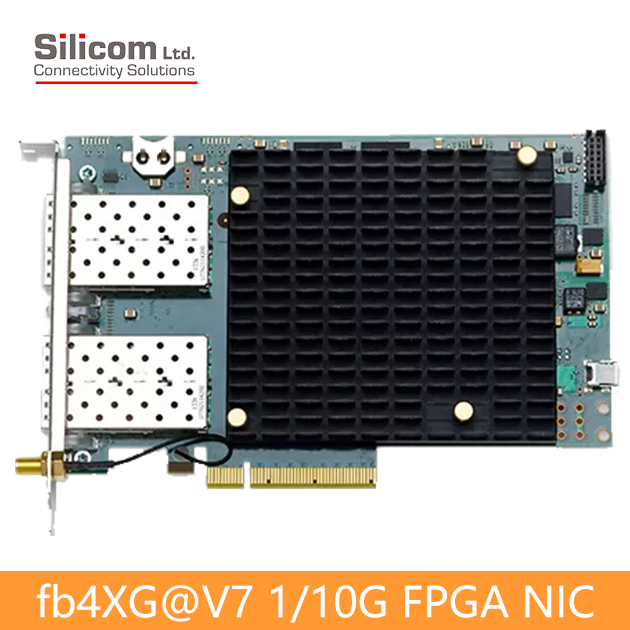

The fb4XG@7 series is a high performance OEM hardware platform for 10 Gigabit Ethernet with quad port SFP+ network interface. The standard configuration is based on Xilinx Virtex7 XC7VX330T FPGA.
The card is also offered with a variety of different FPGAs to provide flexibility for the intended application
As an optional feature, the card can be fitted with two SATA connectors which can provide connectivity to a wide range of standard storage devices directly to the FPGA NIC.
-
Host Interface:
- Physical bus connector: 8-lane PCIe
- PCIe bus type: 1-8 lane PCIe Gen1/Gen2/Gen3
Network Interface:
- IEEE standard: IEEE 802.3 10 Gbit/s Ethernet
- Physical interface: 4 x SFP+ ports
- Supported SFP+ modules: Multimode SR (850 nm), singlemode LR (1310 nm), multimode LRM (1310 nm), singlemode ER (1550 nm) or Direct Attached Copper (Twinax)
- Data rate: 4 x 10 Gbit/s
- Ethernet PHY directly embedded in FPGA for full packet control
Configuration:
- 16 bit fast parallel programming interface from supporting preprogrammed controller
- Configuration flash supports two boot images with automatic fallback to fail safe image if first image fails
- Support for encrypted FPGA bit file (optional)
- Upload of FPGA configuration to flash via PCIe
-
General Technical Specifications
On Board Clock: PCIe clock: 100MHz
125 MHz oscillator
156.25 MHz oscillator
150 MHz oscillator for SATA (optional)On Board Memory: 2 x 64 bit DDR3@1600MT/s 4GB (total 8GB memory)
1 MB user configurable space in flash for permanent storage
1 x 36 bit QDRII+@2200MT/s 144 Mb / 288 Mb / 576 Mb (optional)FPGA: fB4XG@V7690: Xilinx Virtex7 XC7VX690T-2
fB4XG@V7693: Xilinx Virtex7 XC7VX690T-3
fB4XG@V7330: Xilinx Virtex7 XC7VX330T-2
Xilinx Virtex7 XC7VX415T (optional)Environment:
Physical dimensions: half length, standard height PCIe Power consumption: less than 6W with uninitialized FPGA Operating temperature: 0 – 55°C, 30 – 130°F Operating humidity: 20 – 80% Hardware compliance: RoHS, CE Passive cooling: no on-board fan required Active cooling: optional Additional Board Support: On board temperature sensor
Board status LED
2 user configurable dual color LED
FPGA controlled Link and Activity LED for each port
PPS clock synchronization connector
2 x SATA connector (optional)Optional Intellectual Property Support: Flash configuration I/F
8 lane PCIe
DDR3 Memory controller
QDRII+ Memory controller
Fast Ethernet MAC (optional)
MDIO controller (optional)
I2C controller (optional)
SPI master I/F (optional)
TCP-offload engine (optional) -
P/N
Description
Notes
fb4XG@V7 Quad port SFP+ card supporting 4x1GE/10GE, PCIe Gen3 x8 lanes, optional SATA connectors RoHS Compliant
-
