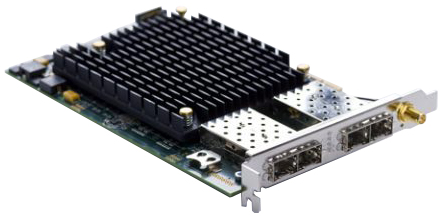

fb4G@V6130 FPGA Card Quad Port SFP Gigabit Ethernet PCI Express FPGA Card
商品簡述：
The fb4G@V6130 is a high performance OEM hardware platform for 1G Ethernet with quad port SFP network interface.
The standard configuration is based on Xilinx Virtex6 LX130T FPGA. The card is also offered with a variety of different FPGAs to provide flexibility for the intended application.
As an optional feature, the card can be fitted with two SATA connectors which can provide connectivity to a wide range of standard storage devices directly to the FPGA card.
檔案下載
-
Host Interface:
- Physical bus connector: 8-lane PCIe
- PCIe bus type: 1-8 lane PCIe Gen1/Gen2
Network Interface:
- IEEE standard: IEEE 802.3 1 Gbit/s Ethernet
- Physical interface: 4 SFP ports.
- Supported SFP modules: Multimode SR (850 nm), singlemode LR (1310 nm), multimode LRM (1310 nm), singlemode ER (1550 nm) or Direct Attached Copper (Twinax)
- Data rate: 4 x 1 Gbit/s
Configuration:
- 16 bit fast parallel programming interface from supporting preprogrammed controller
- Configuration flash supports two boot images with automatic fallback to fail safe image if first image fails
- Support for encrypted FPGA bit file (optional)
- Upload of FPGA configuration to flash via PCIe
-
General Technical Specifications
On Board Memory: 2 x 64 bit DDR3@1066MT/s 2GB (total 4GB memory)
1 MB user configurable space in flash for permanent storageOn Boar Clocks: PCIe clock: 100MHz
25 MHz oscillator
125 MHz oscillator
150 MHz oscillator for SATA connector (optional)FPGA: fb4G@V6130: Xilinx Virtex6 LX130T-2
fb4G@V6240: Xilinx Virtex6 LX240T-2
Xilinx Virtex6 LX365T (optional)
Xilinx Virtex6 LX195T (optional)
Xilinx Virtex6 SX315T (optional)
Xilinx Virtex6 SX475T (optional)Environment:
Physical dimensions: half length, standard height PCIe Power consumption: less than 7 Watts with uninitialized FPGA Operating temperature: 0 – 55 °C, 32 – 131 °F Operating humidity: 20 – 80% Hardware compliance: RoHS, CE Passive cooling: no on-board fan required Active cooling: optional Additional Board Support: On board temperature sensor
Board status LED
3 user configurable dual color LED
FPGA controlled Link and Activity LED for each port
PPS clock synchronization connector
2 x SATA connector (optional)Additional Intellectual Property Support: Flash configuration I/F
DDR3 memory controller
8 lane PCIe
MDIO controller (optional)
Ethernet MAC (optional)
I2C controller (optional)
SPI master I/F (optional)
TCP-offload engine (optional) -
P/N
Description
Notes
fb4G@V6130 Quad port SFP card supporting 1G Ethernet, PCIe Gen2 x8 lanes RoHS Compliant
-
功能說明
Host Interface:
- Physical bus connector: 8-lane PCIe
- PCIe bus type: 1-8 lane PCIe Gen1/Gen2
Network Interface:
- IEEE standard: IEEE 802.3 1 Gbit/s Ethernet
- Physical interface: 4 SFP ports.
- Supported SFP modules: Multimode SR (850 nm), singlemode LR (1310 nm), multimode LRM (1310 nm), singlemode ER (1550 nm) or Direct Attached Copper (Twinax)
- Data rate: 4 x 1 Gbit/s
Configuration:
- 16 bit fast parallel programming interface from supporting preprogrammed controller
- Configuration flash supports two boot images with automatic fallback to fail safe image if first image fails
- Support for encrypted FPGA bit file (optional)
- Upload of FPGA configuration to flash via PCIe
-
技術規格
General Technical Specifications
On Board Memory: 2 x 64 bit DDR3@1066MT/s 2GB (total 4GB memory)
1 MB user configurable space in flash for permanent storageOn Boar Clocks: PCIe clock: 100MHz
25 MHz oscillator
125 MHz oscillator
150 MHz oscillator for SATA connector (optional)FPGA: fb4G@V6130: Xilinx Virtex6 LX130T-2
fb4G@V6240: Xilinx Virtex6 LX240T-2
Xilinx Virtex6 LX365T (optional)
Xilinx Virtex6 LX195T (optional)
Xilinx Virtex6 SX315T (optional)
Xilinx Virtex6 SX475T (optional)Environment:
Physical dimensions: half length, standard height PCIe Power consumption: less than 7 Watts with uninitialized FPGA Operating temperature: 0 – 55 °C, 32 – 131 °F Operating humidity: 20 – 80% Hardware compliance: RoHS, CE Passive cooling: no on-board fan required Active cooling: optional Additional Board Support: On board temperature sensor
Board status LED
3 user configurable dual color LED
FPGA controlled Link and Activity LED for each port
PPS clock synchronization connector
2 x SATA connector (optional)Additional Intellectual Property Support: Flash configuration I/F
DDR3 memory controller
8 lane PCIe
MDIO controller (optional)
Ethernet MAC (optional)
I2C controller (optional)
SPI master I/F (optional)
TCP-offload engine (optional) -
訂購資訊
P/N
Description
Notes
fb4G@V6130 Quad port SFP card supporting 1G Ethernet, PCIe Gen2 x8 lanes RoHS Compliant
