Silicom fbC2CGg5 10/25/40/100G FPGA 封包擷取卡
商品編號：原廠: Silicom Ltd.
商品簡述：
◆ 2x100GE/40GE鏈路速度
◆ 8x10GE和8x25GE的鏈路速度
◆ 封包過濾、高級處理、流量管理
◆ 負載平衡和主機卸載機制
◆ 標準gen3 x16 PCIe 連接器
◆ Precision timestamping
◆ 3.2 nano second resolution
◆ Microsecond latency
◆ fbCAPTURE API
◆ 提供高達 107 Gbps 輸出入頻寬
◆ 卡間連接和第二個插槽連接，雙倍 PCIe 頻寬
檔案下載
-

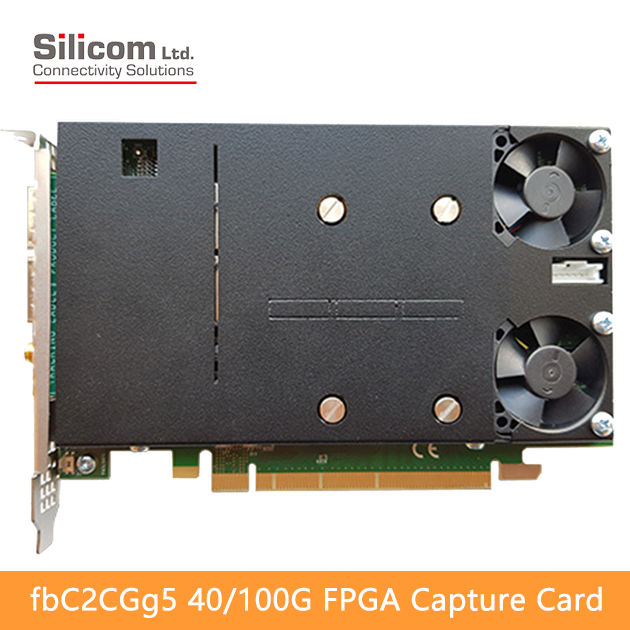

Silicom fbC2CGg5 10/25/40/100G封包擷取卡，提供網路連接和直接資料擷取到主機之內存記憶體，零封包遺失和硬體式封包處理引擎。 2xQSFP28 插槽支援 2x100GE/40GE、8x10GE 和 8x25GE 的鏈路速度。 fbC2CGg5 卡基於 Kintex UltraScale+ 系列中的尖端 Xilinx FPGA 技術，提供封包過濾、高級處理、流量管理、負載平衡和主機卸載機制。
此款高性能硬體平台，使用 QSFP28/QSFP+/SFP28 收發器連接到網路，並執行封包處理，同時使用完全支持標準 gen3 x16 的標準 PCIe 連接器，為主機內建記憶體提供高達 107 Gbps 的輸出入頻寬。fbC2CGg5 使用單插槽 x16 通道 PCIe 解決方案。 該卡已準備好進行卡間連接和第二個插槽連接，以便為主機系統提供雙倍 PCIe 頻寬。 NUMA 特定的記憶體配置，使 NUMA 環境中能夠進行有效的流量管理和負載平衡。
-
- 2 x 100GE/40GE/25GE, 8 x 10GE and 8 x 25GE
- PCIe form-factor: Full height, half length (111.15 x 167.65 mm)
- 16 GB 72-bit Error-correcting code (ECC) DDR4 RAM
- 107 Gbps sustained capture to host
- 16-lane PCIe Gen3
- Precision timestamping
- 3.2 nano second resolution
- Microsecond latency
- fbCAPTURE API
- Hardware filtering and traffic distribution
- Application acceleration and scalability
-
Network Interface:
IEEE standard: IEEE 802.3 10GE, 40GE, 25GE, 100GE Interfaces: - Support Forward Error Correction (FEC) on 100GE
- Physical interface: 2 x QSFP28 slots
- 10GE supported through break-out cable assemblies
- 2 x 25 SFP28 through QSA28 adaptor
- Supported QSFP28 modules (25GE/100GE):
- SR4, LR4, PSM4, CWDM4/CLR4, CR4 (DAC), ER4
- Appropriate 4 x 25GE break-out modules
- Supported QSFP+ modules (10GE/40GE):
- SR4, LR4, LM4, PSM4/IR4, CDWM4, ER4, ZR4, BiDi, CR4
- Appropriate 4 x 10GE break-out modules
- Ethernet PHY directly embedded in FPGA
Host Interface:
PCI bus: - 16 lane PCIe Gen 3
- PCIe compliant
Host interface 64 logical channels that can be connected to DMA or egressed to physical output ports On Board Memory:
On Board Memory: - On board buffering for application robustness
- 16 GB 72-bit Error-correcting code (ECC) DDR4 RAM
Performance:
Capture rate: - Capture rate (bursts): Line rate (200 Gbps)
- Capture rate (sustained): 107 Gbps to host memory
General Technical Specifications
Latency: - Less than 3.2 μs to host memory
- Less than 3.2 μs from host memory to Tx
- Non-blocking sending, allowing user applications to operate independently
Time Stamping and Sync: - Resolution = 3.2 ns
- Accuracy down to 20 ns
- Daisy chain PPS between multiple cards supported
- Via COAX or Card interconnect adapter
- Strict Host based sync available in driver
- PPS synchronization via SMA connector
Configuration: - Dual boot images with automatic fallback to fail-safe image
- Full configuration and firmware upgrades via supplied tools or fbCAPTURE API
Environment: - Full height, ½ length. 111.15 x 167.65 mm with bracket
- Weight: 485 g
- Operating temperature: 0 – 55°C, 30 – 130°F
- Operating humidity: 20 – 80%
- Hardware compliance: RoHS, CE
- Active cooling, with fan sensor
- Passive cooling (option)
Additional Board Support: - fbCAPTURE API
- PF_RING and nTop suite support
- DPDK support
- libPCAP support
- On-board temperature sensors
- On-board multi-color status, Link and Activity LED for ports
- HW prepared for direct Card to Card interconnect and second PCIe slot connection
-
P/N
Firmware for all links speeds below are available with any variant fbC2CGg5-8x10G for 10GE fbC2CGg5-2x25G for 25GE (Excl QSA28 adaptors) fbC2CGg5-2x40G for 40GE fbC2CGg5-2x100G for 100GE (Limited HW filter capacity)
-
產品說明Silicom fbC2CGg5 10/25/40/100G封包擷取卡，提供網路連接和直接資料擷取到主機之內存記憶體，零封包遺失和硬體式封包處理引擎。 2xQSFP28 插槽支援 2x100GE/40GE、8x10GE 和 8x25GE 的鏈路速度。 fbC2CGg5 卡基於 Kintex UltraScale+ 系列中的尖端 Xilinx FPGA 技術，提供封包過濾、高級處理、流量管理、負載平衡和主機卸載機制。
此款高性能硬體平台，使用 QSFP28/QSFP+/SFP28 收發器連接到網路，並執行封包處理，同時使用完全支持標準 gen3 x16 的標準 PCIe 連接器，為主機內建記憶體提供高達 107 Gbps 的輸出入頻寬。fbC2CGg5 使用單插槽 x16 通道 PCIe 解決方案。 該卡已準備好進行卡間連接和第二個插槽連接，以便為主機系統提供雙倍 PCIe 頻寬。 NUMA 特定的記憶體配置，使 NUMA 環境中能夠進行有效的流量管理和負載平衡。 -
功能特性
- 2 x 100GE/40GE/25GE, 8 x 10GE and 8 x 25GE
- PCIe form-factor: Full height, half length (111.15 x 167.65 mm)
- 16 GB 72-bit Error-correcting code (ECC) DDR4 RAM
- 107 Gbps sustained capture to host
- 16-lane PCIe Gen3
- Precision timestamping
- 3.2 nano second resolution
- Microsecond latency
- fbCAPTURE API
- Hardware filtering and traffic distribution
- Application acceleration and scalability
-
技術規格
Network Interface:
IEEE standard: IEEE 802.3 10GE, 40GE, 25GE, 100GE Interfaces: - Support Forward Error Correction (FEC) on 100GE
- Physical interface: 2 x QSFP28 slots
- 10GE supported through break-out cable assemblies
- 2 x 25 SFP28 through QSA28 adaptor
- Supported QSFP28 modules (25GE/100GE):
- SR4, LR4, PSM4, CWDM4/CLR4, CR4 (DAC), ER4
- Appropriate 4 x 25GE break-out modules
- Supported QSFP+ modules (10GE/40GE):
- SR4, LR4, LM4, PSM4/IR4, CDWM4, ER4, ZR4, BiDi, CR4
- Appropriate 4 x 10GE break-out modules
- Ethernet PHY directly embedded in FPGA
Host Interface:
PCI bus: - 16 lane PCIe Gen 3
- PCIe compliant
Host interface 64 logical channels that can be connected to DMA or egressed to physical output ports On Board Memory:
On Board Memory: - On board buffering for application robustness
- 16 GB 72-bit Error-correcting code (ECC) DDR4 RAM
Performance:
Capture rate: - Capture rate (bursts): Line rate (200 Gbps)
- Capture rate (sustained): 107 Gbps to host memory
General Technical Specifications
Latency: - Less than 3.2 μs to host memory
- Less than 3.2 μs from host memory to Tx
- Non-blocking sending, allowing user applications to operate independently
Time Stamping and Sync: - Resolution = 3.2 ns
- Accuracy down to 20 ns
- Daisy chain PPS between multiple cards supported
- Via COAX or Card interconnect adapter
- Strict Host based sync available in driver
- PPS synchronization via SMA connector
Configuration: - Dual boot images with automatic fallback to fail-safe image
- Full configuration and firmware upgrades via supplied tools or fbCAPTURE API
Environment: - Full height, ½ length. 111.15 x 167.65 mm with bracket
- Weight: 485 g
- Operating temperature: 0 – 55°C, 30 – 130°F
- Operating humidity: 20 – 80%
- Hardware compliance: RoHS, CE
- Active cooling, with fan sensor
- Passive cooling (option)
Additional Board Support: - fbCAPTURE API
- PF_RING and nTop suite support
- DPDK support
- libPCAP support
- On-board temperature sensors
- On-board multi-color status, Link and Activity LED for ports
- HW prepared for direct Card to Card interconnect and second PCIe slot connection
-
