◆ 2 x 100 Gbit/s QSFP28 cage
◆ 100Gbps吞吐量(Tx 和 Rx雙向）
◆ 16-lane(8x8) PCIe Gen4
◆ 增強型DPDK支援虛擬化
◆ 可程式轉送規則
◆ 256 個 SR-IOV 虛擬功能
◆ 惡意VF防護
◆ 遠端直接記憶體存取 (RDMA)
◆ 支援服務品質(QoS)
-

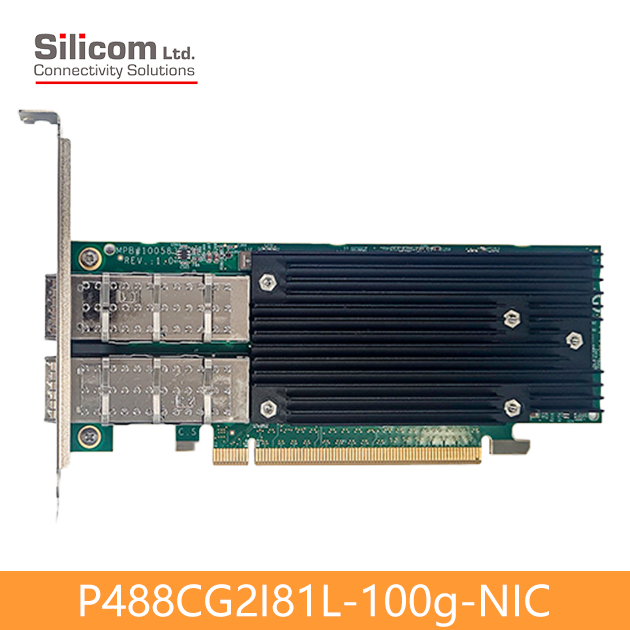

P488CG2I81L 雙埠 100G 乙太網路 PCIe 卡（採用 Intel® E810-CAM1 控制器）
基於Intel® E810-CAM1 控制器的雙埠 100G 乙太網路 PCIe 卡
Silicom 的 P488CG2I81L 雙埠 100G 乙太網路 PCIe 卡（採用 Intel® E810）專為伺服器與高階設備設計。Silicom P488CG2I81L 採用 Intel E810 架構，能輕鬆整合至任何 PCI Express x16（可分岔為 x8x8）插槽，連接至 100Gigabit 網路。其效能經過最佳化，確保在高效能網路應用中，系統 I/O 不再成為瓶頸。
Silicom P488CG2I81L 雙埠 100G 乙太網路 PCIe 卡採用 Intel® E810-CAM1 乙太網路控制器，內建兩個 100G 乙太網路埠，支援強化的可程式化封包處理管線、虛擬化技術（加強型 SR-IOV，支援最多 256 個虛擬功能，並向下相容 VF 驅動程式）、以及針對通訊市場的新功能（細緻的排程器、傳輸端丟棄支援、根據不同封包標頭調整資源配額、強化的服務品質（QoS）與突發流量控制），並支援遠端直接記憶體存取 RDMA（iWARP 與 RoCEv2）。
Silicom 的 100G 乙太網路 PCI-Express 伺服器介面卡是建構多重網路區段、處理關鍵任務的高效能網路應用與高效能伺服器環境的理想解決方案。
-
LAN and Virtualization Features:
‧100Gbps throughput (each of Tx and Rx)
‧Parses up to 504B from packet header
‧768 switch ports (VSIs)
‧Programmable forwarding rules
‧Virtualization
。Host virtualization via VMQ and SR-IOV
。256 SR-IOV Virtual Functions
。Stateless offloads for tunneled packets (network virtualization support)
。Malicious VF protection
‧RDMA
。iWARP and RoCE v2
。256K Queue Pairs (QPs)
。Send Queue Push Mode
‧QoS
。WFQ Transmit scheduler with 9 programmable layers
。Pipeline sharing and starvation avoidance
。Up to 32 Congestion Domains in the Tx and Rx paths
。QoS via 802.1p PCP or Differentiated services DSCP value
。Rx Packet buffer supports at least 3 no-drop flow control events, shared among portsHost Interface:
‧PCIe x16, x8x8 bifurcation via gold fingers of edge card
‧Support PCI Express Base Specification Revision 4.0, 16GT/s, 8GT/s, 5GT/s or 2.5GT/s Compliance with PCIe spec 4.0 currently at draft 0.9 -
P488CG2I81L Dual port 100G Ethernet PCIe Card Intel® E810-CAM1 Based
Dual port 100G Ethernet PCIe Card Intel® E810-CAM1 Based
-QX4: QSFP28 100Gigabit Ethernet Technical Specifications Adapters:
QSFP28 ( Quad Small Form-factor Pluggable) supports: 100GBASE: CAUI-4 interfaces according IEEE 802.3bm and IEEE 802.3bj standards , to support 100GBase-SR4, 100GBase-LR4 and 100GBase-CR4 interfaces. -ZS4: Fiber 100GBASE-SR4 Ethernet Technical Specifications:
IEEE Standard / Network topology: Fiber Gigabit Ethernet, 100GBase-SR4 (850nM) Data Transfer Rate: 103.125GBd Cables and Operating distance:
Up to:Multimode fiber: 62.5um, (OM4) 100m Optical Output Power: Typical: -1.55 dBm
Minimum: -8.4 dB
* being defined by IEEE 802.3bmOptical Receive Sensitivity: Typical: -8.94 dBm
Maximum: -5.2 dBm
* being defined by IEEE 802.3bm-ZL4: Fiber 100GBASE-LR4 Ethernet Technical Specifications:
IEEE Standard / Network topology: Fiber 100Gigabit Ethernet, 100GBASE-LR4 (1310nM) Data Transfer Rate: 103.1GBd Cables and Operating distance:
Up to:Single-Mode: 10km Optical Output Power: Minimum: -4.3 dBm Optical Receive Sensitivity: Maximum: -10.6 dBm General Technical Specifications
Interface Standard: PCI-Express Base Specification Revision 4.0 (16 GTs) Board Size: Low profile short add-in card 193.05mm X 68.91mm (7.60”X 2.713”) PCI Express Card Type: X8 X8 bifurcation PCI Express Voltage: +12V ± 8% PCI Connector: Gold Finger: X16 Lane Controller: (2x) Intel E810-CAM1 Holder: Metal Bracket Operating Humidity: 0%–90%, non-condensing Operating Temperature: 0°C – 45°C (32°F – 113°F) Storage: -40°C–65°C (-40°F–149°F) Regulation: Card shall meet CE, FCC Class B, ROHS requirements LEDs/ Connectors Specifications:
LEDs: Two LEDs per port
(1) Link 100/25/10Gbps LED:
Turns on – link
100Gbps (Green)
25G/10Gbps (Yellow)
(1) Link/Act 100/25/10Gbps LED (Green):
Turns on – link, Blink – ACTLEDs location: LEDs are located on the PCB, visible by light guide in the metal bracket Connector: (2) MPO/LC Operating Systems Support:
Operating system support: Windows
Linux
FreeBSD
VMware -
P488CG2I81L Dual port 100G Ethernet PCIe Card Intel® E810-CAM1 Based
Dual port 100G Ethernet PCIe Card Intel® E810-CAM1 Based
P/N
Description
Notes:
P488CG2I81L-QX4 Dual port (QSFP28) 100 Gigabit Ethernet PCI Express Gen 4.0 Server Adapter RoHS Compliant, Gen4 x16 (bifurcated x8 x8), based on Intel 2xE810-CAM1 P488CG2I81L-ZS4 Dual port Fiber (SR4) 100 Gigabit Ethernet PCI Express Gen 4.0 Server Adapter RoHS Compliant, Gen4 x 16 (bifurcated x8 x8), based on Intel 2xE810-CAM1 P488CG2I81L-ZL4 Dual port Fiber (LR4) 100 Gigabit Ethernet PCI Express Gen 4.0 Server Adapter RoHS Compliant, Gen4 x 16 (bifurcated x8 x8), based on Intel 2xE810-CAM1 P488CG2I81LEU-QX4 Dual port (QSFP28) 100 Gigabit Ethernet PCI Express Gen 4.0 Server Adapter w/ PXE UEFI RoHS Compliant, Gen4 x 16 (bifurcated x8 x8), based on Intel 2xE810-CAM1 P488CG2I81LEU-ZS4 Dual port Fiber (SR4) 100 Gigabit Ethernet PCI Express Gen 4.0 Server Adapter w/ PXE UEFI RoHS Compliant, Gen4 x 16 (bifurcated x8 x8), based on Intel 2xE810-CAM1 P488CG2I81LEU-ZL4 Dual port Fiber (LR4) 100 Gigabit Ethernet PCI Express Gen 4.0 Server Adapter w/ PXE UEFI RoHS Compliant, Gen4 x 16 (bifurcated x8 x8), based on Intel 2xE810-CAM1 1V0
-
產品說明
P488CG2I81L 雙埠 100G 乙太網路 PCIe 卡（採用 Intel® E810-CAM1 控制器）
基於Intel® E810-CAM1 控制器的雙埠 100G 乙太網路 PCIe 卡
Silicom 的 P488CG2I81L 雙埠 100G 乙太網路 PCIe 卡（採用 Intel® E810）專為伺服器與高階設備設計。Silicom P488CG2I81L 採用 Intel E810 架構，能輕鬆整合至任何 PCI Express x16（可分岔為 x8x8）插槽，連接至 100Gigabit 網路。其效能經過最佳化，確保在高效能網路應用中，系統 I/O 不再成為瓶頸。
Silicom P488CG2I81L 雙埠 100G 乙太網路 PCIe 卡採用 Intel® E810-CAM1 乙太網路控制器，內建兩個 100G 乙太網路埠，支援強化的可程式化封包處理管線、虛擬化技術（加強型 SR-IOV，支援最多 256 個虛擬功能，並向下相容 VF 驅動程式）、以及針對通訊市場的新功能（細緻的排程器、傳輸端丟棄支援、根據不同封包標頭調整資源配額、強化的服務品質（QoS）與突發流量控制），並支援遠端直接記憶體存取 RDMA（iWARP 與 RoCEv2）。
Silicom 的 100G 乙太網路 PCI-Express 伺服器介面卡是建構多重網路區段、處理關鍵任務的高效能網路應用與高效能伺服器環境的理想解決方案。
-
功能特色
LAN and Virtualization Features:
‧100Gbps throughput (each of Tx and Rx)
‧Parses up to 504B from packet header
‧768 switch ports (VSIs)
‧Programmable forwarding rules
‧Virtualization
。Host virtualization via VMQ and SR-IOV
。256 SR-IOV Virtual Functions
。Stateless offloads for tunneled packets (network virtualization support)
。Malicious VF protection
‧RDMA
。iWARP and RoCE v2
。256K Queue Pairs (QPs)
。Send Queue Push Mode
‧QoS
。WFQ Transmit scheduler with 9 programmable layers
。Pipeline sharing and starvation avoidance
。Up to 32 Congestion Domains in the Tx and Rx paths
。QoS via 802.1p PCP or Differentiated services DSCP value
。Rx Packet buffer supports at least 3 no-drop flow control events, shared among portsHost Interface:
‧PCIe x16, x8x8 bifurcation via gold fingers of edge card
‧Support PCI Express Base Specification Revision 4.0, 16GT/s, 8GT/s, 5GT/s or 2.5GT/s Compliance with PCIe spec 4.0 currently at draft 0.9 -
技術規格
P488CG2I81L Dual port 100G Ethernet PCIe Card Intel® E810-CAM1 Based
Dual port 100G Ethernet PCIe Card Intel® E810-CAM1 Based
-QX4: QSFP28 100Gigabit Ethernet Technical Specifications Adapters:
QSFP28 ( Quad Small Form-factor Pluggable) supports: 100GBASE: CAUI-4 interfaces according IEEE 802.3bm and IEEE 802.3bj standards , to support 100GBase-SR4, 100GBase-LR4 and 100GBase-CR4 interfaces. -ZS4: Fiber 100GBASE-SR4 Ethernet Technical Specifications:
IEEE Standard / Network topology: Fiber Gigabit Ethernet, 100GBase-SR4 (850nM) Data Transfer Rate: 103.125GBd Cables and Operating distance:
Up to:Multimode fiber: 62.5um, (OM4) 100m Optical Output Power: Typical: -1.55 dBm
Minimum: -8.4 dB
* being defined by IEEE 802.3bmOptical Receive Sensitivity: Typical: -8.94 dBm
Maximum: -5.2 dBm
* being defined by IEEE 802.3bm-ZL4: Fiber 100GBASE-LR4 Ethernet Technical Specifications:
IEEE Standard / Network topology: Fiber 100Gigabit Ethernet, 100GBASE-LR4 (1310nM) Data Transfer Rate: 103.1GBd Cables and Operating distance:
Up to:Single-Mode: 10km Optical Output Power: Minimum: -4.3 dBm Optical Receive Sensitivity: Maximum: -10.6 dBm General Technical Specifications
Interface Standard: PCI-Express Base Specification Revision 4.0 (16 GTs) Board Size: Low profile short add-in card 193.05mm X 68.91mm (7.60”X 2.713”) PCI Express Card Type: X8 X8 bifurcation PCI Express Voltage: +12V ± 8% PCI Connector: Gold Finger: X16 Lane Controller: (2x) Intel E810-CAM1 Holder: Metal Bracket Operating Humidity: 0%–90%, non-condensing Operating Temperature: 0°C – 45°C (32°F – 113°F) Storage: -40°C–65°C (-40°F–149°F) Regulation: Card shall meet CE, FCC Class B, ROHS requirements LEDs/ Connectors Specifications:
LEDs: Two LEDs per port
(1) Link 100/25/10Gbps LED:
Turns on – link
100Gbps (Green)
25G/10Gbps (Yellow)
(1) Link/Act 100/25/10Gbps LED (Green):
Turns on – link, Blink – ACTLEDs location: LEDs are located on the PCB, visible by light guide in the metal bracket Connector: (2) MPO/LC Operating Systems Support:
Operating system support: Windows
Linux
FreeBSD
VMware -
訂購資訊
P488CG2I81L Dual port 100G Ethernet PCIe Card Intel® E810-CAM1 Based
Dual port 100G Ethernet PCIe Card Intel® E810-CAM1 Based
P/N
Description
Notes:
P488CG2I81L-QX4 Dual port (QSFP28) 100 Gigabit Ethernet PCI Express Gen 4.0 Server Adapter RoHS Compliant, Gen4 x16 (bifurcated x8 x8), based on Intel 2xE810-CAM1 P488CG2I81L-ZS4 Dual port Fiber (SR4) 100 Gigabit Ethernet PCI Express Gen 4.0 Server Adapter RoHS Compliant, Gen4 x 16 (bifurcated x8 x8), based on Intel 2xE810-CAM1 P488CG2I81L-ZL4 Dual port Fiber (LR4) 100 Gigabit Ethernet PCI Express Gen 4.0 Server Adapter RoHS Compliant, Gen4 x 16 (bifurcated x8 x8), based on Intel 2xE810-CAM1 P488CG2I81LEU-QX4 Dual port (QSFP28) 100 Gigabit Ethernet PCI Express Gen 4.0 Server Adapter w/ PXE UEFI RoHS Compliant, Gen4 x 16 (bifurcated x8 x8), based on Intel 2xE810-CAM1 P488CG2I81LEU-ZS4 Dual port Fiber (SR4) 100 Gigabit Ethernet PCI Express Gen 4.0 Server Adapter w/ PXE UEFI RoHS Compliant, Gen4 x 16 (bifurcated x8 x8), based on Intel 2xE810-CAM1 P488CG2I81LEU-ZL4 Dual port Fiber (LR4) 100 Gigabit Ethernet PCI Express Gen 4.0 Server Adapter w/ PXE UEFI RoHS Compliant, Gen4 x 16 (bifurcated x8 x8), based on Intel 2xE810-CAM1 1V0
