Network Critical SmartNA-XL
◆Compatible with electrical and optical NPB or bypass modules
◆L2–L4 filtering, replication, aggregation, and load balancing
◆VLAN Tag/De-Tag、QinQ、MPLS
◆Detects and automatically bypasses failed inline tools
◆TAP/Bypass modules support power-fail bypass
◆Configurable input and output port assignments
◆Flexible traffic replication-many-to-one, one-to-many, and many-to-many
◆Supports Web GUI, CLI, and SNMP
◆Optional PacketPro advanced packet processing module
-
The SmartNA-XL™ 1/10/40G modular TAP & Packet Broker integrates a wide variety of Active, or Bypass TAP modules. These modules safely connect tools while protecting network reliability and availability. Additionally, there's a rear slot for another 1/10/40G module, enabling connection to high-speed optical networks or tool farms, and stacking of SmartNA-XL™ units for scalability. The powerful non-blocking backplane ensures traffic flows at 10Mbps.
1G/10G/40G modular TAP & Packet Broker; custom access solutions for high and low-speed networks
Compatible with all major manufacturers’ monitoring tools, including protocol analyzers, probes and IDS
PacketPro™ advanced packet manipulation: Packet Slicing, Header Stripping, Payload Masking
Primary access solution for all packet capture, performance monitoring, lawful interception and forensic analysis applications
Hot-swap TAP modules for easy reconfiguration and expansion to meet evolving network demands
Zero latency, no point of failure, no batteries required and 100% safe and efficient deployment of inline tools
Secure SNMP monitoring for integration into Network Management Systems
Flexible provision of new tools quickly and easily
Real-time alerting
Aggregating TAPs
Aggregate SPAN/TAP traffic feeds across multiple network links, filtering, optimizing and feeding the combined traffic to connected security and monitoring tools for further analysis.
Filtering TAPs
Identify traffic based on signature or patterns across any part of the packet, or corresponding to application sessions, and forward to security appliances, increasing their efficacy and performance.
Load-balancing TAPs
Distribute traffic among multiple ports based on a variety of options: hashing, bandwidth, cumulative traffic, packet rate, connections, and more.
SmartNA-XL™
10/40G Hybrid Network Packet BrokerThe SmartNA-XL™ 10/40G Hybrid Network Packet Broker The SmartNA-XL™ 1/10/40G modular TAP & Packet Broker, delivers high-speed performance and flexibility. It meets the needs of managing tools that protect network infrastructure, secure information, and combat ever-changing network threats.
With five slots to integrate a variety of Ethernet TAP modules in a modular 1RU chassis, the SmartNA-XL™ safely connects tools while preserving network reliability and availability. Even in case of power failure, network traffic continues to flow, establishing the SmartNA-XL™ as the clear leader in network access and visibility. Advanced features like aggregation, filtering, load balancing, and port mapping reduce planning, configuration, and tool management time.
Network Critical’s SmartNA-XL™ empowers organizations to securely, efficiently, and reliably manage the flow of information. Even during power failures, network traffic persists, reinforcing the SmartNA-XL™ as the leader in network access and visibility. The modular, customizable TAP modules, with a total of twenty 1/10/40Gbps SFP/SFP+ ports, offer versatility by providing network input and tool connection ports anywhere on the system.
An Introduction to Drag-n-Vu™
Connecting a variety of network monitoring and security tools that perform different functions and require varying subsets of network data is complicated. Even relatively simple tools like firewalls are easily misconfigured.
Manually configuring what goes into these tools and what comes out is a painfully slow, error-prone task. Mistakes in filter hierarchies or port assignments can create security vulnerabilities and service interruptions.
With Drag-n-Vu™, the painstaking planning, computation and detailed input requirements are removed. You now have complete control and visibility at your fingertips. Creating filters and mapping data to input and output ports is as easy as dragging the cursor over a graphical port representation and clicking.
See How It Works
Chasis
The SmartNA-X / XL 1U chassis is one of the most flexible and feature-rich platforms on the market. It supports up to 4 + 1 modules within a single 1U space and can simultaneously accommodate both Network TAP and NPB modules.

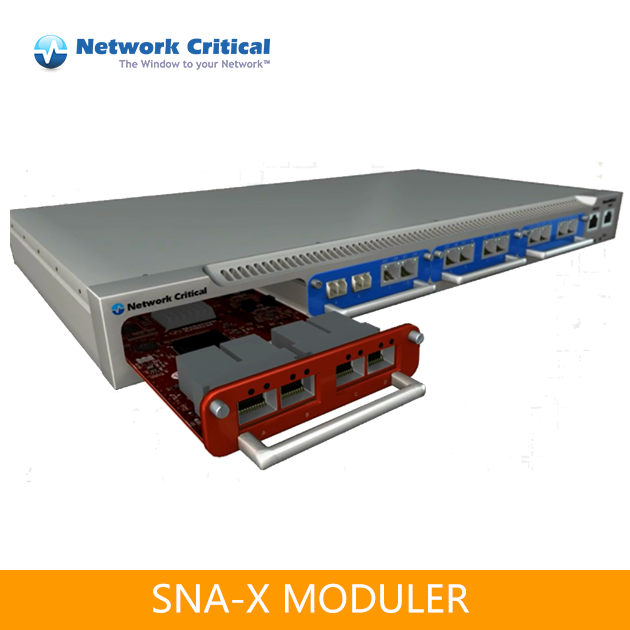

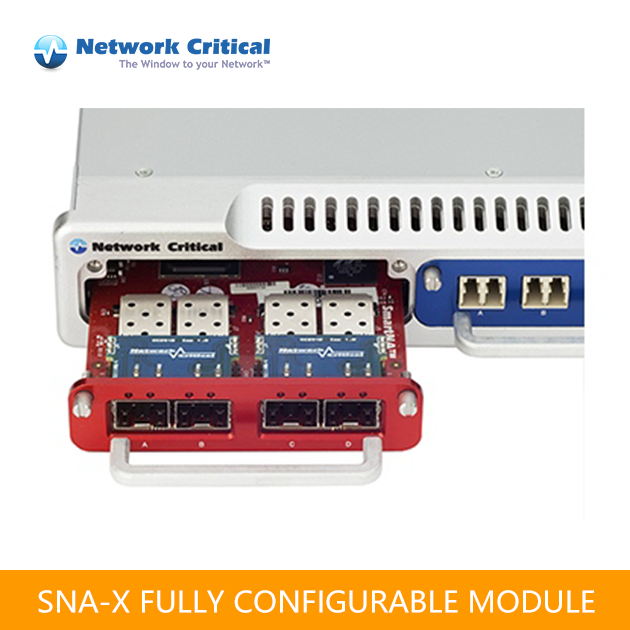

SmartNA-X Front ViewSmartNA-XL Front View
The SmartNA-X / XL 1U chassis supports up to eight TAP links, allowing traffic to be aggregated and filtered before being replicated to one or more monitoring ports. It can also copy traffic from a single TAP or multiple network source ports to as many as 14 monitoring ports. Each TAP module can be fully configured to perform input aggregation, replication, distribution, packet filtering, and output forwarding, as well as load balancing across multiple output ports. The chassis includes a dedicated MGMT (OAM) management interface that supports both Web GUI and Telnet CLI operation, along with an independent Console port for convenient device management. -
- Powerful, flexible 1G/10G modular TAP & Packet Broker system; custom access solutions for new high speed networks while also supporting lower speed legacy tools
- PacketPro™ advanced packet manipulation: Packet Slicing, Header Stripping, Payload Masking
- Passive Fiber Optic Gigabit TAP modules
- Bypass 10 Gigabit TAP modules - automatic appliance bypass, no point of failure
- Dual hot-swappable power supplies
- Hot-swap TAP modules for easy re-configuration and expansion to meet evolving network demands
- Secure SNMP monitoring for integration into Network Management Systems
- Fastfail™ Copper Gigabit TAP modules
- Intelligent and intuitive Drag-n-Vu™ user interface for fast, error-free configuration.
- Key enabler with regulations such as SOX, HIPAA, and PCI-DSS
- Full configuration upload/download
- IP/GRE/NVGRE/VXLAN Encapsulation
- Field replaceable fan tray
- L2-4 Packet filtering, VLAN Tagging, Load Balancing
-
CHASIS
Part Number Description 5010 SmartNA-X Chassis： （2） 10GbE SFP+ Rear Ports, （1） 1&10GbE Module Slots, （3） 1GbE Module Slots. Management： （1） Serial Console Port （CLI） and （1） LAN Management Port （CLI and web GUI） 5011 SmartNA-X Chassis： （1） 1&10GbE Module Slot, （1） 10GbE Rear Slot, （3） 1GbE Module Slots. Management： （1） Serial Console Port （CLI） and （1） LAN Management Port （CLI and web GUI） POWER SUPPLY & FAN OPTIONS
Part Number Description 5101 SmartNA-X： （1） AC C14 Hot-Swap PSU for 5010 & 5011 5102 SmartNA-X： （1） DC Terminal Hot-Swappable PSU for 5010 and 5011 chassis 5201 SmartNA-X： （1） Dual Hot-Swappable Fan MODULE
Part Number Description 5501 SmartNA-X Module： （2） 10GbE SFP+ Ports & （2） 1GbE SFP Ports, Breakout/Aggregation/Regeneration/Filtering 5502 SmartNA-X Module： （2） Rear 10GbE SFP+ Ports, Breakout/Aggregation/Regeneration/Filtering - （5011 Chassis only） 5511 SmartNA-X Module： （4） 10/100/1000BASE-T Ports, Breakout/Aggregation/Regeneration/Filtering 5521 SmartNA-X Module： （2） 1000BASE-SX Ports LC （optical patch leads） & （2） 10/100/1000BASE-T Ports, Breakout/Aggregation/Regeneration/Filtering 5522 SmartNA-X Module： （2） 1000BASE-LX Ports LC （optical patch leads） & （2） 10/100/1000BASE-T Ports, Breakout/Aggregation/Regeneration/Filtering 5523 SmartNA-X Module： （2） 1000BASE-SX Ports LC （50：50 optical splits） & （2） 10/100/1000BASE-T Ports, Breakout/Aggregation/Regeneration/Filtering 5524 SmartNA-X Module： （2） 1000BASE-LX Ports LC （50：50 optical splits） & （2） 10/100/1000BASE-T Ports, Breakout/Aggregation/Regeneration/Filtering 5531 SmartNA-X Module： （2） 10/100/1000BASE-T Ports & （2） SFP Ports, Breakout/Aggregation/Regeneration/Filtering 5543 SmartNA-X Module： （2） 1000BASE-SX Ports LC （optical patch leads） & （2） SFP Ports, Breakout/Aggregation/Regeneration/Filtering 5544 SmartNA-X Module： （2） 1000BASE-LX Ports LC （optical patch leads） & （2） SFP Ports, Breakout/Aggregation/Regeneration/Filtering 5545 SmartNA-X Module： （2） 1000BASE-SX Ports LC （50：50 optical splits） & （2） SFP Ports, Breakout/Aggregation/Regeneration/Filtering 5546 SmartNA-X Module： （2） 1000BASE-LX Ports LC （50：50 optical splits） & （2） SFP Ports, Breakout/Aggregation/Regeneration/Filtering 5090 SmartNA-X Module： Blanking Plate 5091 SmartNA-X Chassis PSU Slot Blanking Plate MODULE OPTIONS V-LINE （Bypass Switch Module）
Part Number Description 5611 SmartNA-X V-Line Module： （4） 10/100/1000 Ethernet 5621 SmartNA-X V-Line Module, （2） SX Optical, （2） 10/100/1000 Ethernet 5622 SmartNA-X V-Line Module, （2） LX Optical, （2） 10/100/1000 Ethernet 5623 SmartNA-X V-Line Module, （2） 10/100/1000 Ethernet （2） 1GbE SFP 5624 SmartNA-X V-Line Module, （2） SX Optical, （2） 1GbE SFP 5625 SmartNA-X V-Line Module, （2） LX Optical, （2） 1GbE SFP
-
- Powerful and flexible Ethernet packet slicing, header stripping and payload masking module.
- Packet slicing: truncate packets at a particular byte to remove payloads and reduce appliance workload and storage requirements.
- Header stripping: remove any tunneling protocol to obtain the un-tunneled traffic for further (filtering) processing, such as GRE, GTP(U/C), RTP, VN-Tag, MPLS.
- Payload masking: erase any part of the packet payload for analysis or archiving without the sensitive contents.
- User-configured customisable packet modifications.
- Simple modular extension to SmartNA-X system.
- Configurable as 2x10G, or 4x1G line-rate full duplex parallel processing engines.
- Ultimate optimisation of network security or monitoring appliances.
- Leverage existing appliance investment.
- Allow easy filtering, aggregation, and load balancing of packets with headers removed.
- Key enabler for compliance with regulations such as SOX, HIPAA and PCI-DSS.
- Visibility into tunneled or protocol-encapsulated flows.
- Eliminate the need for additional expensive monitoring tools to decipher protocols.
- Future-proof solution:1G & 10G configurations.
- Efficient, cost-effective and practical NPMD enhancement.
- Process traffic from integrated TAPs, Bypass TAPs, SPAN ports, and NPBs.
-
Product Description
The SmartNA-XL™ 1/10/40G modular TAP & Packet Broker integrates a wide variety of Active, or Bypass TAP modules. These modules safely connect tools while protecting network reliability and availability. Additionally, there's a rear slot for another 1/10/40G module, enabling connection to high-speed optical networks or tool farms, and stacking of SmartNA-XL™ units for scalability. The powerful non-blocking backplane ensures traffic flows at 10Mbps.
1G/10G/40G modular TAP & Packet Broker; custom access solutions for high and low-speed networks
Compatible with all major manufacturers’ monitoring tools, including protocol analyzers, probes and IDS
PacketPro™ advanced packet manipulation: Packet Slicing, Header Stripping, Payload Masking
Primary access solution for all packet capture, performance monitoring, lawful interception and forensic analysis applications
Hot-swap TAP modules for easy reconfiguration and expansion to meet evolving network demands
Zero latency, no point of failure, no batteries required and 100% safe and efficient deployment of inline tools
Secure SNMP monitoring for integration into Network Management Systems
Flexible provision of new tools quickly and easily
Real-time alerting
Aggregating TAPs
Aggregate SPAN/TAP traffic feeds across multiple network links, filtering, optimizing and feeding the combined traffic to connected security and monitoring tools for further analysis.
Filtering TAPs
Identify traffic based on signature or patterns across any part of the packet, or corresponding to application sessions, and forward to security appliances, increasing their efficacy and performance.
Load-balancing TAPs
Distribute traffic among multiple ports based on a variety of options: hashing, bandwidth, cumulative traffic, packet rate, connections, and more.
SmartNA-XL™
10/40G Hybrid Network Packet BrokerThe SmartNA-XL™ 10/40G Hybrid Network Packet Broker The SmartNA-XL™ 1/10/40G modular TAP & Packet Broker, delivers high-speed performance and flexibility. It meets the needs of managing tools that protect network infrastructure, secure information, and combat ever-changing network threats.
With five slots to integrate a variety of Ethernet TAP modules in a modular 1RU chassis, the SmartNA-XL™ safely connects tools while preserving network reliability and availability. Even in case of power failure, network traffic continues to flow, establishing the SmartNA-XL™ as the clear leader in network access and visibility. Advanced features like aggregation, filtering, load balancing, and port mapping reduce planning, configuration, and tool management time.
Network Critical’s SmartNA-XL™ empowers organizations to securely, efficiently, and reliably manage the flow of information. Even during power failures, network traffic persists, reinforcing the SmartNA-XL™ as the leader in network access and visibility. The modular, customizable TAP modules, with a total of twenty 1/10/40Gbps SFP/SFP+ ports, offer versatility by providing network input and tool connection ports anywhere on the system.
An Introduction to Drag-n-Vu™
Connecting a variety of network monitoring and security tools that perform different functions and require varying subsets of network data is complicated. Even relatively simple tools like firewalls are easily misconfigured.
Manually configuring what goes into these tools and what comes out is a painfully slow, error-prone task. Mistakes in filter hierarchies or port assignments can create security vulnerabilities and service interruptions.
With Drag-n-Vu™, the painstaking planning, computation and detailed input requirements are removed. You now have complete control and visibility at your fingertips. Creating filters and mapping data to input and output ports is as easy as dragging the cursor over a graphical port representation and clicking.
See How It Works
Chasis
The SmartNA-X / XL 1U chassis is one of the most flexible and feature-rich platforms on the market. It supports up to 4 + 1 modules within a single 1U space and can simultaneously accommodate both Network TAP and NPB modules.
SmartNA-X Front ViewSmartNA-XL Front View
The SmartNA-X / XL 1U chassis supports up to eight TAP links, allowing traffic to be aggregated and filtered before being replicated to one or more monitoring ports. It can also copy traffic from a single TAP or multiple network source ports to as many as 14 monitoring ports. Each TAP module can be fully configured to perform input aggregation, replication, distribution, packet filtering, and output forwarding, as well as load balancing across multiple output ports. The chassis includes a dedicated MGMT (OAM) management interface that supports both Web GUI and Telnet CLI operation, along with an independent Console port for convenient device management. -
Features
- Powerful, flexible 1G/10G modular TAP & Packet Broker system; custom access solutions for new high speed networks while also supporting lower speed legacy tools
- PacketPro™ advanced packet manipulation: Packet Slicing, Header Stripping, Payload Masking
- Passive Fiber Optic Gigabit TAP modules
- Bypass 10 Gigabit TAP modules - automatic appliance bypass, no point of failure
- Dual hot-swappable power supplies
- Hot-swap TAP modules for easy re-configuration and expansion to meet evolving network demands
- Secure SNMP monitoring for integration into Network Management Systems
- Fastfail™ Copper Gigabit TAP modules
- Intelligent and intuitive Drag-n-Vu™ user interface for fast, error-free configuration.
- Key enabler with regulations such as SOX, HIPAA, and PCI-DSS
- Full configuration upload/download
- IP/GRE/NVGRE/VXLAN Encapsulation
- Field replaceable fan tray
- L2-4 Packet filtering, VLAN Tagging, Load Balancing
-
